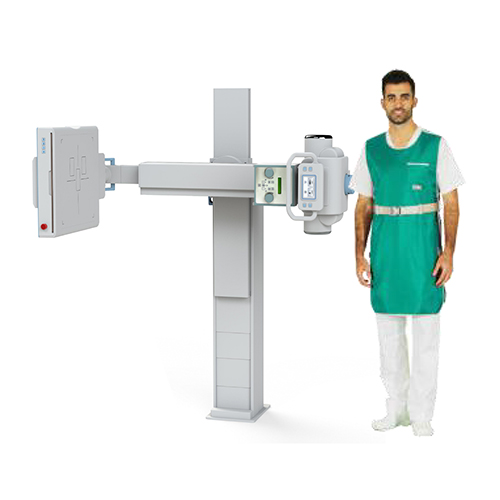

Aspen XDR Straight Arm Digital Radiography System
$200.00
Aspenstate’s Straight Arm DR is a complete universal system that offers an advanced digital x-ray solution in a design that is compact and efficient. Aspen XDR features a 17 x 17 detector for superior
image quality and allows for all imaging views that are required in radiology with maximum patient safety & flexibility.
The Aspen XDR maximizes every square foot of space in a small environment so as to allow the staff more room to maneuver.
-
Guarantee safe checkout
Aspenstate’s Straight Arm DR is a complete universal system that offers an advanced digital x-ray solution in a design that is compact and efficient. Aspen XDR features a 17 x 17 detector for superior
image quality and allows for all imaging views that are required in radiology with maximum patient safety & flexibility.
The Aspen XDR maximizes every square foot of space in a small environment so as to allow the staff more room to maneuver.
Download From Here >>
- Owing to its compact design, the AspenXDR is a low-cost radiography system which is space efficient and requires a short installation time.

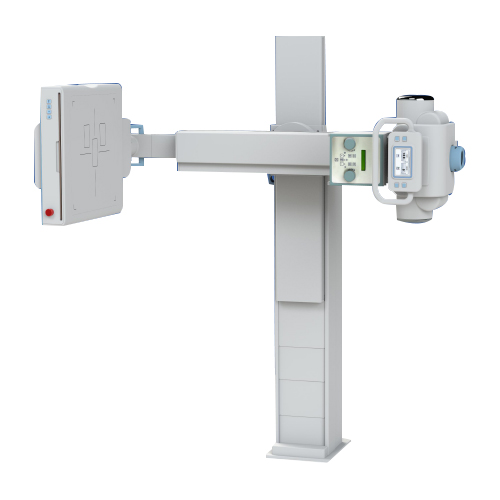

- The system is composed of a floor-to-wall column and a rotatable arm with variable height center
- It is easy to operate and allows radiographic procedures to be completed in a quick and safe manner.
- It allows exposures of patients in a standing, sitting or laying position.
| X-ray & Mechanical | |
|---|---|
| Motorized Movement | 1) Source to Image Distance (SID) control 2) Arm elevating movement at vertical |
| Source to Image | 100~180cm / 40~72 Inch (Continuously Adjustable) |
| Vertical Travel | Max. 120cm / 47.2 Inch |
| Arm Rotation Angle | -30° ~120° |
| Tube Rotation | ±90° |
| Detector Rotation | ±45° |
| Power Requirement | 120VAC or 200-240VAC, 50/60Hz, 1000VA |
| Options | Manual Control and motorized with touchable display / Bucky enclosure |
| Type | Class I |

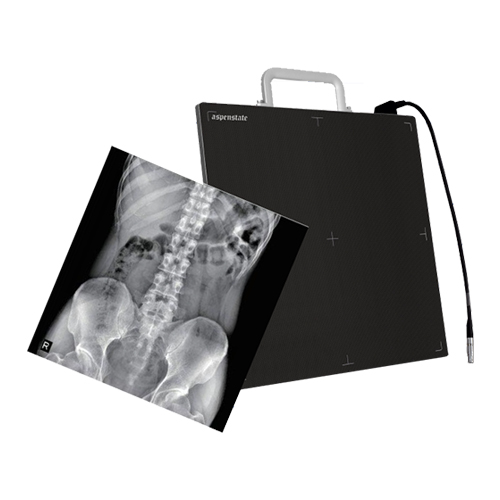

| Detector | |
|---|---|
| Sensor Type | a-Si with PIN diode |
| Scintillator | Gadox / Cs:Tl |
| Dimension | 460 x 460 x 15 mm (ISO 4090 cassette size) |
| Weight | Approx. 5kg |
| Active Pixel Area | 430.08 x 430.08 |
| Pixel Resolution | 3072 x 3072 |
| Pixel Pitch | 140 μm |
| AD Converter | 16 bits |
| Maximum Dose | 80 μGy |
| X-ray Generator Interface | Trigger Mode / Smart AED Mode |
| Image Preview Time | Less than 3 sec. |
| Image Cycle | 10 sec. |
| Interface | Gigabit Ethernet (1000BASE-T) |
| X-ray Voltage Range | 40 - 150 kVp |
| Operation Environment | 15° ~ 35°C, 30 ~ 85% RH (non-condensing) |
| Power | DC 12V, 2.5A |
| Component | Control Box |
Aspenstate’s Straight Arm DR is a complete universal system that offers an advanced digital x-ray solution in a design that is compact and efficient. Aspen XDR features a 17 x 17 detector for superior
image quality and allows for all imaging views that are required in radiology with maximum patient safety & flexibility.
The Aspen XDR maximizes every square foot of space in a small environment so as to allow the staff more room to maneuver.
Download From Here >>
- Owing to its compact design, the AspenXDR is a low-cost radiography system which is space efficient and requires a short installation time.
- The system is composed of a floor-to-wall column and a rotatable arm with variable height center
- It is easy to operate and allows radiographic procedures to be completed in a quick and safe manner.
- It allows exposures of patients in a standing, sitting or laying position.
| X-ray & Mechanical | |
|---|---|
| Motorized Movement | 1) Source to Image Distance (SID) control 2) Arm elevating movement at vertical |
| Source to Image | 100~180cm / 40~72 Inch (Continuously Adjustable) |
| Vertical Travel | Max. 120cm / 47.2 Inch |
| Arm Rotation Angle | -30° ~120° |
| Tube Rotation | ±90° |
| Detector Rotation | ±45° |
| Power Requirement | 120VAC or 200-240VAC, 50/60Hz, 1000VA |
| Options | Manual Control and motorized with touchable display / Bucky enclosure |
| Type | Class I |
| Detector | |
|---|---|
| Sensor Type | a-Si with PIN diode |
| Scintillator | Gadox / Cs:Tl |
| Dimension | 460 x 460 x 15 mm (ISO 4090 cassette size) |
| Weight | Approx. 5kg |
| Active Pixel Area | 430.08 x 430.08 |
| Pixel Resolution | 3072 x 3072 |
| Pixel Pitch | 140 μm |
| AD Converter | 16 bits |
| Maximum Dose | 80 μGy |
| X-ray Generator Interface | Trigger Mode / Smart AED Mode |
| Image Preview Time | Less than 3 sec. |
| Image Cycle | 10 sec. |
| Interface | Gigabit Ethernet (1000BASE-T) |
| X-ray Voltage Range | 40 - 150 kVp |
| Operation Environment | 15° ~ 35°C, 30 ~ 85% RH (non-condensing) |
| Power | DC 12V, 2.5A |
| Component | Control Box |
Description
Aspenstate’s Straight Arm DR is a complete universal system that offers an advanced digital x-ray solution in a design that is compact and efficient. Aspen XDR features a 17 x 17 detector for superior
image quality and allows for all imaging views that are required in radiology with maximum patient safety & flexibility.
The Aspen XDR maximizes every square foot of space in a small environment so as to allow the staff more room to maneuver.
- Owing to its compact design, the AspenXDR is a low-cost radiography system which is space efficient and
requires a short installation time. - The system is composed of a floor-to-wall column and a rotatable arm with variable height center
- It is easy to operate and allows radiographic procedures to be completed in a quick and safe manner.
- It allows exposures of patients in a standing, sitting or laying position.
| X-ray & Mechanical | |
|---|---|
| Motorized Movement | 1) Source to Image Distance (SID) control 2) Arm elevating movement at vertical |
| Source to Image | 100~180cm / 40~72 Inch (Continuously Adjustable) |
| Vertical Travel | Max. 120cm / 47.2 Inch |
| Arm Rotation Angle | -30° ~120° |
| Tube Rotation | ±90° |
| Detector Rotation | ±45° |
| Power Requirement | 120VAC or 200-240VAC, 50/60Hz, 1000VA |
| Options | Manual Control and motorized with touchable display / Bucky enclosure |
| Type | Class I |
| Detector | |
|---|---|
| Sensor Type | a-Si with PIN diode |
| Scintillator | Gadox / Cs:Tl |
| Dimension | 460 x 460 x 15 mm (ISO 4090 cassette size) |
| Weight | Approx. 5kg |
| Active Pixel Area | 430.08 x 430.08 |
| Pixel Resolution | 3072 x 3072 |
| Pixel Pitch | 140 μm |
| AD Converter | 16 bits |
| Maximum Dose | 80 μGy |
| X-ray Generator Interface | Trigger Mode / Smart AED Mode |
| Image Preview Time | Less than 3 sec. |
| Image Cycle | 10 sec. |
| Interface | Gigabit Ethernet (1000BASE-T) |
| X-ray Voltage Range | 40 – 150 kVp |
| Operation Environment | 15° ~ 35°C, 30 ~ 85% RH (non-condensing) |
| Power | DC 12V, 2.5A |
| Component | Control Box |
